56SD30-01-1-AJN

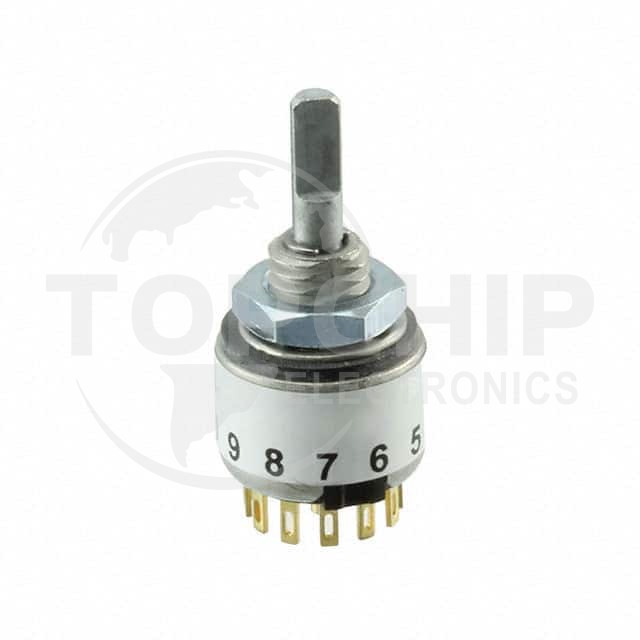

Image is for reference, please contact us to get the real picture

Manufacturer Part
56SD30-01-1-AJN
Manufacturer
Grayhill, Inc.
Description
SWITCH ROTARY 2-12POS 200MA 115V
Category
Switches
Family
Rotary Switches
Series
-
In Stock
154
Datasheets
-

56SD30-01-1-AJN Specifications

  • Series:56
  • Package:Bulk
  • Part Status:Active
  • Number of Positions:2 ~ 12
  • Index Stops:Adjustable
  • Number of Decks:1
  • Number of Poles per Deck:1
  • Circuit per Deck:SP12T
  • Contact Timing:Non-Shorting (BBM)
  • Current Rating (Amps):200mA (AC/DC)
  • Voltage Rating - AC:115 V
  • Voltage Rating - DC:30 V
  • Actuator Type:Flatted (3.17mm Dia)
  • Actuator Length:9.53mm
  • Angle of Throw:30°
  • Contact Material:Brass
  • Contact Finish:Silver
  • Mounting Type:Panel Mount
  • Termination Style:Solder Lug
  • Features:Shaft and Panel Sealed
  • Depth Behind Panel:12.19mm
