C7D0223N

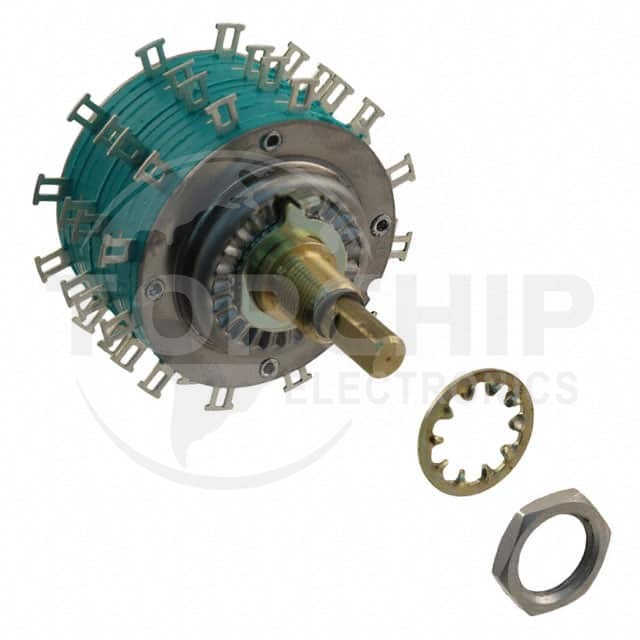

Image is for reference, please contact us to get the real picture

Manufacturer Part
C7D0223N
Manufacturer
Electroswitch
Description
SWITCH ROTARY 23POS 500MA 125V
Category
Switches
Family
Rotary Switches
Series
-
In Stock
15
Datasheets
-

C7D0223N Specifications

  • Series:C7
  • Package:Bulk
  • Part Status:Active
  • Number of Positions:23
  • Index Stops:Fixed
  • Number of Decks:2
  • Number of Poles per Deck:1
  • Circuit per Deck:SP23T
  • Contact Timing:Non-Shorting (BBM)
  • Current Rating (Amps):500mA (AC), 1A (DC)
  • Voltage Rating - AC:125 V
  • Voltage Rating - DC:28 V
  • Actuator Type:Flatted (6.35mm Dia)
  • Actuator Length:14.29mm
  • Angle of Throw:15°
  • Contact Material:Brass
  • Contact Finish:Silver
  • Mounting Type:Panel Mount
  • Termination Style:Solder Lug
  • Features:-
  • Depth Behind Panel:32.49mm
