AGN200S03Z

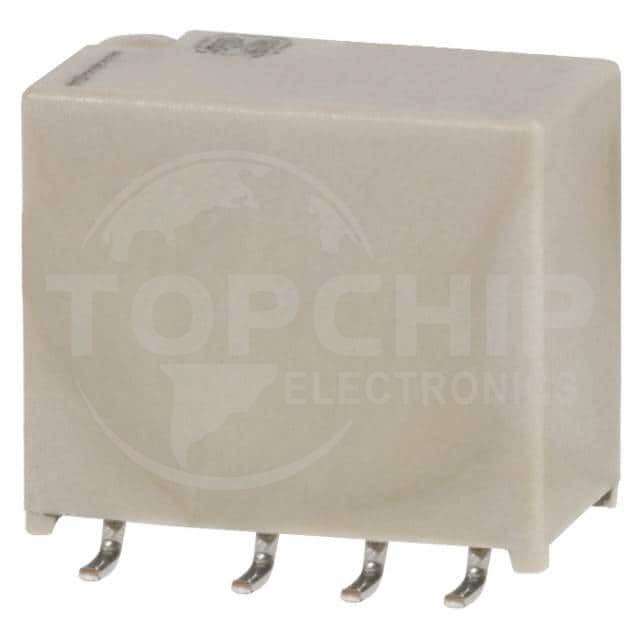

Image is for reference, please contact us to get the real picture

Manufacturer Part
AGN200S03Z
Manufacturer
Panasonic
Description
RELAY TELECOM DPDT 1A 3VDC
Category
Relays
Family
Signal Relays, Up to 2 Amps
Series
-
In Stock
10000
Datasheets
-

AGN200S03Z Specifications

  • Series:AGN
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Mounting Type:Surface Mount
  • Coil Voltage:3VDC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):1 A
  • Switching Voltage:125VAC, 110VDC - Max
  • Coil Current:46.7 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:Gull Wing
  • Seal Rating:-
  • Coil Insulation:-
  • Must Operate Voltage:2.25 VDC
  • Must Release Voltage:0.3 VDC
  • Operate Time:4 ms
  • Release Time:4 ms
  • Operating Temperature:-40°C ~ 85°C
  • Contact Material:Silver Palladium (AgPd), Gold (Au)
  • Relay Type:Telecom
