PRD-11AG0-120

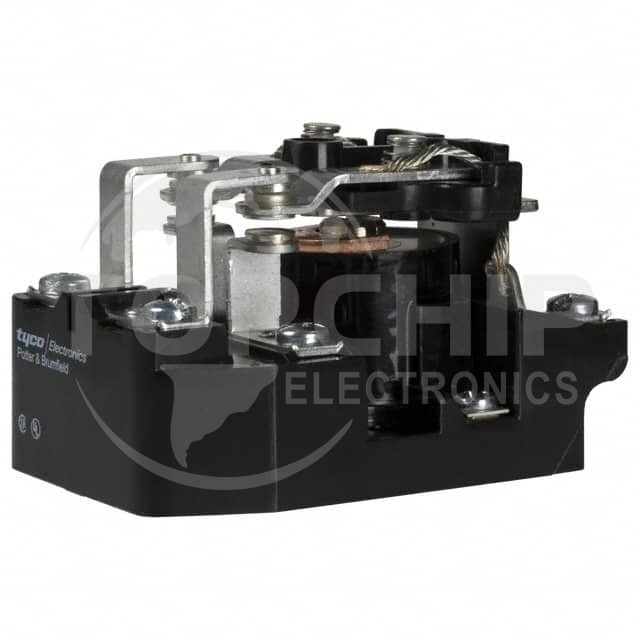

Image is for reference, please contact us to get the real picture

Manufacturer Part
PRD-11AG0-120
Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURPOSE DPDT 30A 120V
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
37
Datasheets
-

PRD-11AG0-120 Specifications

  • Series:PRD
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Chassis Mount
  • Coil Voltage:120VAC
  • Contact Form:DPDT (2 Form C)
  • Contact Rating (Current):30 A
  • Switching Voltage:240VAC - Nom
  • Coil Current:85 mA
  • Coil Type:Non Latching
  • Features:-
  • Termination Style:Screw Terminal
  • Seal Rating:-
  • Coil Insulation:Class B
  • Must Operate Voltage:102 VAC
  • Must Release Voltage:12 VAC
  • Operate Time:40 ms
  • Release Time:20 ms
  • Operating Temperature:-55°C ~ 45°C
  • Contact Material:Silver Cadmium Oxide (AgCdO)
  • Relay Type:General Purpose
