3-1415358-1

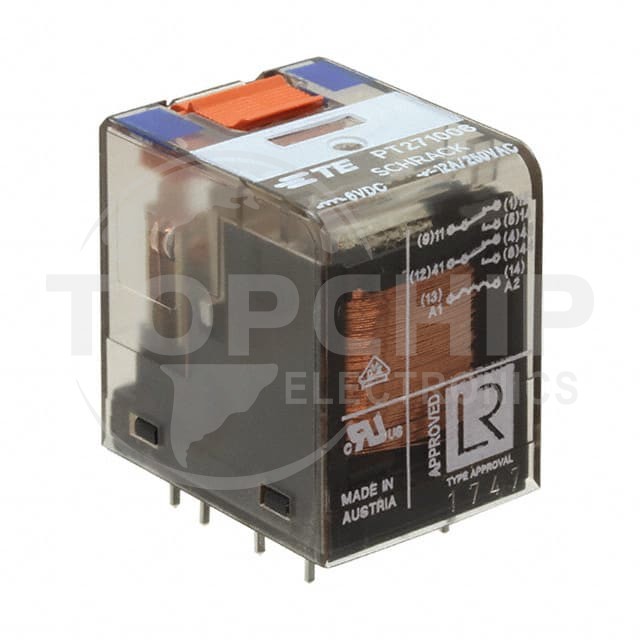

Image is for reference, please contact us to get the real picture

Manufacturer Part
3-1415358-1
Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
RELAY GEN PURP
Category
Relays
Family
Power Relays, Over 2 Amps
Series
-
In Stock
24
Datasheets
-

3-1415358-1 Specifications

  • Series:PBH, SCHRACK
  • Package:Bulk
  • Part Status:Active
  • Mounting Type:Through Hole
  • Coil Voltage:48VDC
  • Contact Form:4PDT (4 Form C)
  • Contact Rating (Current):6 A
  • Switching Voltage:240VAC - Max
  • Coil Current:15.6 mA
  • Coil Type:Non Latching
  • Features:Test Button
  • Termination Style:PC Pin
  • Seal Rating:Sealed - Flux Protection
  • Coil Insulation:Class F
  • Must Operate Voltage:36 VDC
  • Must Release Voltage:4.8 VDC
  • Operate Time:15 ms
  • Release Time:10 ms
  • Operating Temperature:-40°C ~ 70°C
  • Contact Material:Silver Nickel (AgNi)
  • Relay Type:General Purpose
