STS232120B301

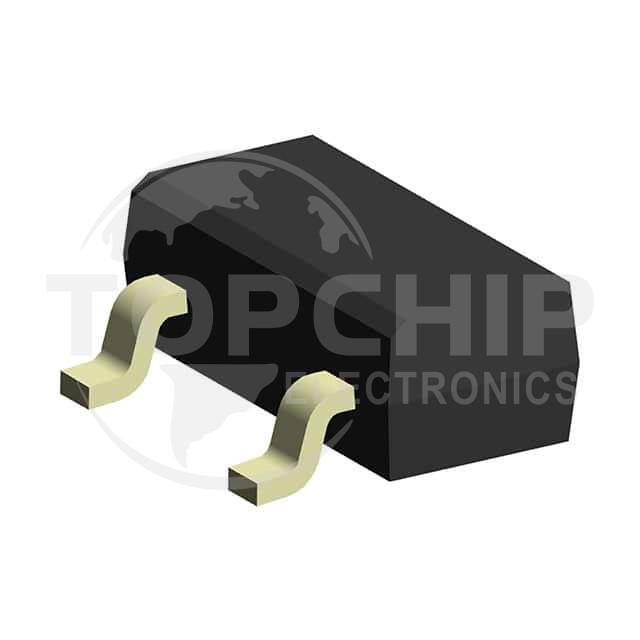

Image is for reference, please contact us to get the real picture

Manufacturer Part
STS232120B301
Manufacturer
PowerStor (Eaton)
Description
TVS DIODE ESD SOT23 12V 30 PF
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
3234
Datasheets
-

STS232120B301 Specifications

  • Series:-
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:2
  • Voltage - Reverse Standoff (Typ):12V (Max)
  • Voltage - Breakdown (Min):13.3V
  • Voltage - Clamping (Max) @ Ipp:25V
  • Current - Peak Pulse (10/1000µs):12A (8/20µs)
  • Power - Peak Pulse:350W
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:30pF @ 1MHz
  • Operating Temperature:-55°C ~ 125°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:TO-236-3, SC-59, SOT-23-3
  • Supplier Device Package:SOT-23
