SMBJ78CD-M3/H

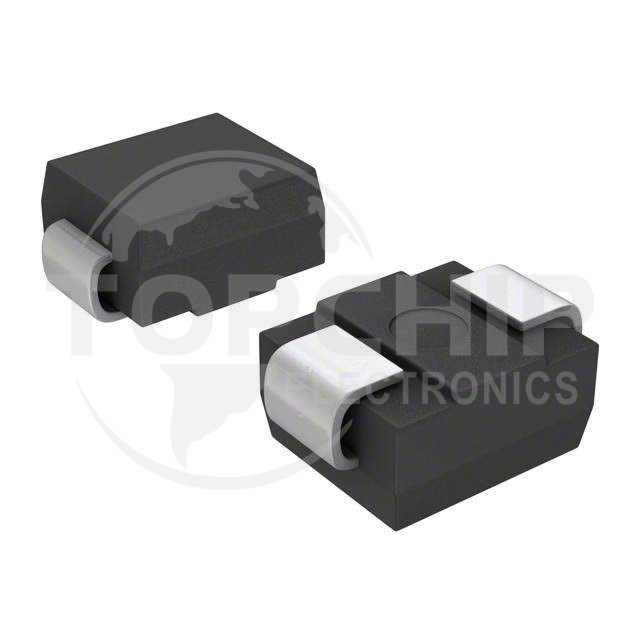

Image is for reference, please contact us to get the real picture

Manufacturer Part
SMBJ78CD-M3/H
Manufacturer
Vishay General Semiconductor – Diodes Division
Description
TVS DIODE 78V 124V DO214AA
Category
Circuit Protection Devices
Family
TVS - Diodes
Series
-
In Stock
150
Datasheets
-

SMBJ78CD-M3/H Specifications

  • Series:TransZorb®
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Type:Zener
  • Unidirectional Channels:-
  • Bidirectional Channels:1
  • Voltage - Reverse Standoff (Typ):78V
  • Voltage - Breakdown (Min):88.1V
  • Voltage - Clamping (Max) @ Ipp:124V
  • Current - Peak Pulse (10/1000µs):4.86A
  • Power - Peak Pulse:600W
  • Power Line Protection:No
  • Applications:General Purpose
  • Capacitance @ Frequency:-
  • Operating Temperature:-55°C ~ 150°C (TJ)
  • Mounting Type:Surface Mount
  • Package / Case:DO-214AA, SMB
  • Supplier Device Package:DO-214AA (SMBJ)
