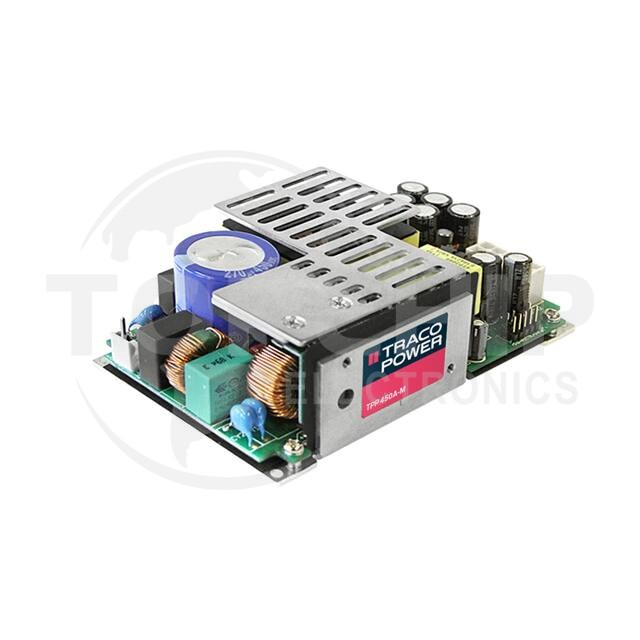

TPP 450-115A-M Specifications

• Series:TPP 450A (450W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:85 ~ 264 VAC, 120 ~ 370 VDC
• Voltage - Output 1:15V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):16.6A
• Power (Watts):249W (450W Forced Air)
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:92%
• Operating Temperature:-40°C ~ 85°C (With Derating)
• Features:Adjustable Output, DC Input Capable, PFC, Standby Output, Remote On/Off, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:5.00" L x 3.00" W x 1.58" H (127.0mm x 76.2mm x 40.1mm)
• Approval Agency:CB, CE, cURus
• Standard Number:60601-1; 62368-1
