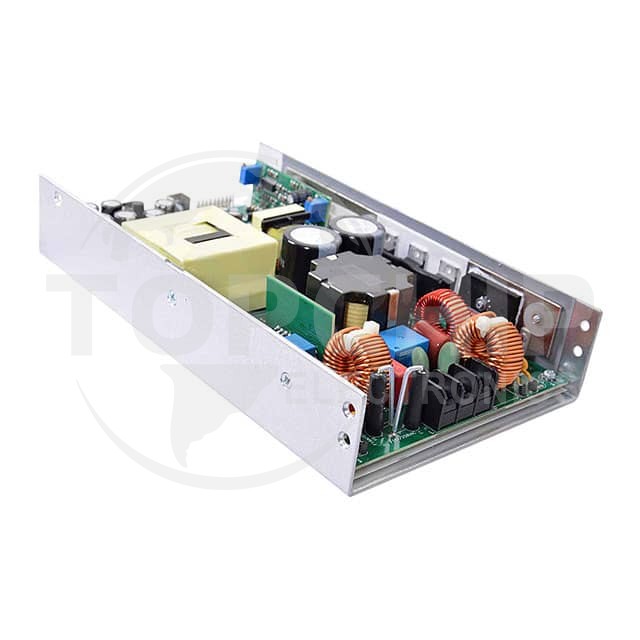

MBC800-1T12 Specifications

• Series:MBC800 (800W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:85 ~ 264 VAC, 120 ~ 390 VDC
• Voltage - Output 1:12V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):25A
• Power (Watts):300W (400W Forced Air)
• Applications:Medical
• Voltage - Isolation:4.245 kV
• Efficiency:93%
• Operating Temperature:-40°C ~ 70°C (With Derating)
• Features:Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:8.50" L x 5.00" W x 1.61" H (216.0mm x 127.0mm x 41.0mm)
• Approval Agency:CE, cUL, Nemko, UL
• Standard Number:-
