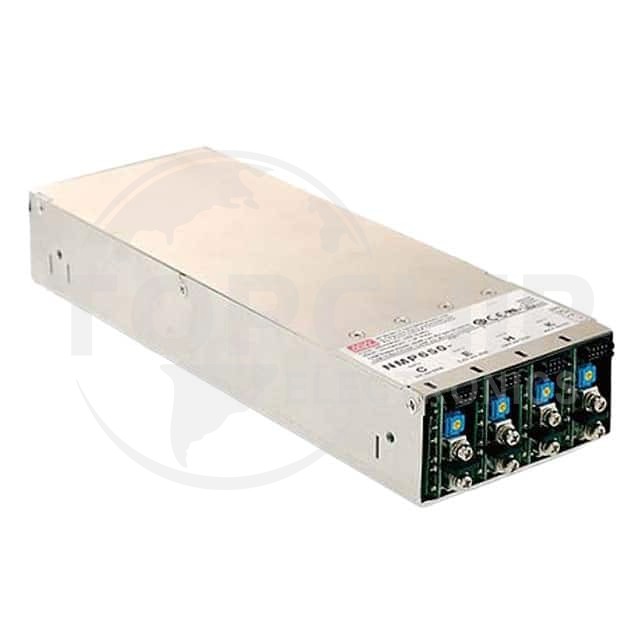

NMP650-CEKK-03 Specifications

• Series:NMP (650W)
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:3
• Voltage - Input:90 ~ 264 VAC, 120 ~ 370 VDC
• Voltage - Output 1:5V
• Voltage - Output 2:12V
• Voltage - Output 3:48V
• Voltage - Output 4:-
• Current - Output (Max):36A, 20A, 10A
• Power (Watts):650W
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:88.5%
• Operating Temperature:-30°C ~ 70°C (With Derating)
• Features:Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:9.84" L x 3.50" W x 1.61" H (250.0mm x 89.0mm x 41.0mm)
• Approval Agency:CB, CE, cURus, EAC, TUV
• Standard Number:60601-1; 62368-1
