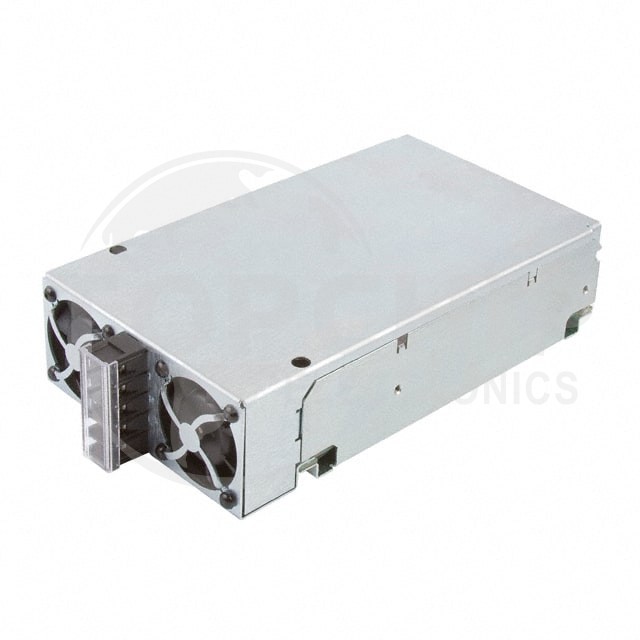

EMH350PD23-EF Specifications

• Series:EMH (350W)
• Package:Box
• Part Status:Active
• Type:Enclosed
• Number of Outputs:2
• Voltage - Input:80 ~ 275 VAC
• Voltage - Output 1:12V
• Voltage - Output 2:48V
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):16.5A, 4.2A
• Power (Watts):350W
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:87%
• Operating Temperature:0°C ~ 70°C (With Derating)
• Features:Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:7.00" L x 4.00" W x 1.75" H (177.8mm x 101.6mm x 44.5mm)
• Approval Agency:CB, CE, TUV, UL
• Standard Number:62368-1
