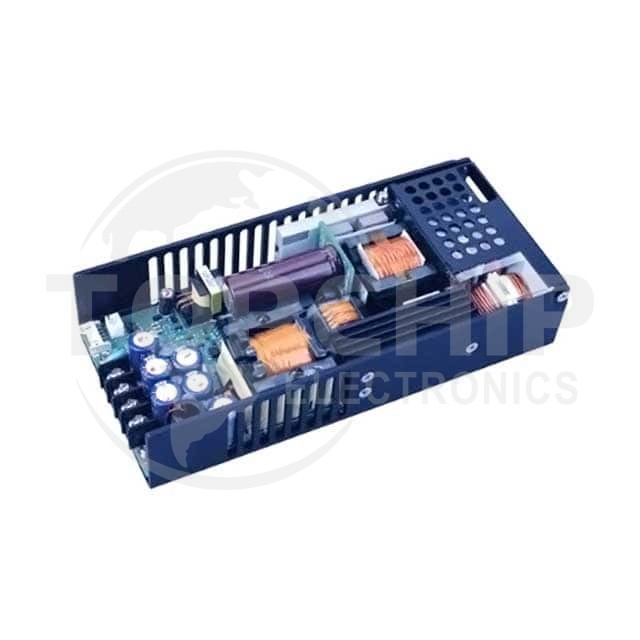

CUS350M24/F Specifications

• Series:CUS350M (350/420W)
• Package:Box
• Part Status:Active
• Type:Open Frame
• Number of Outputs:1
• Voltage - Input:85 ~ 265 VAC
• Voltage - Output 1:24V
• Voltage - Output 2:-
• Voltage - Output 3:-
• Voltage - Output 4:-
• Current - Output (Max):14.7A
• Power (Watts):350W (420W Forced Air)
• Applications:ITE (Commercial), Medical
• Voltage - Isolation:4 kV
• Efficiency:94%
• Operating Temperature:-20°C ~ 70°C (With Derating)
• Features:Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Standby Output, Universal Input
• Mounting Type:Chassis Mount
• Size / Dimension:7.48" L x 3.43" W x 1.57" H (190.0mm x 87.0mm x 40.0mm)
• Approval Agency:CE, TUV
• Standard Number:-
