1011539

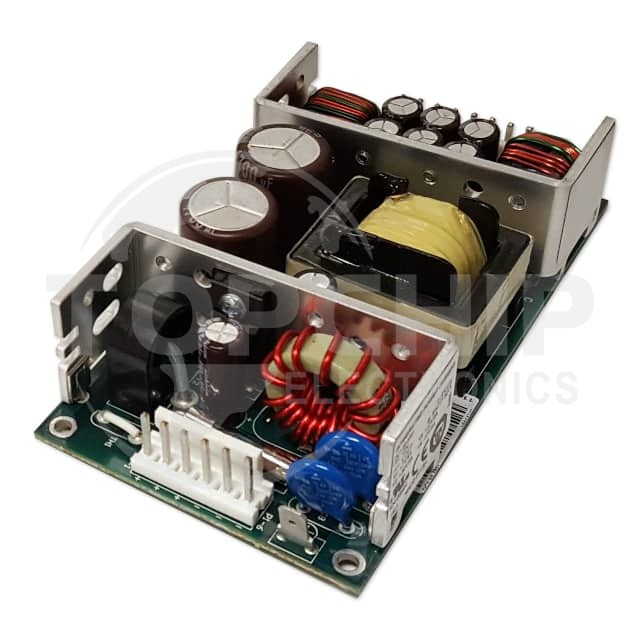

Image is for reference, please contact us to get the real picture

Manufacturer Part
1011539
Manufacturer
Integrated Power Designs
Description
DC/DC CONV 5V 24V 12V -12V 80W
Category
Power Supplies - External/Internal (Off-Board)
Family
DC DC Converters
Series
-
In Stock
2
Datasheets
-

1011539 Specifications

  • Series:DC1-80 (80W)
  • Package:Box
  • Part Status:Active
  • Type:Open Frame
  • Voltage - Input (Min):9V
  • Voltage - Input (Max):18V
  • Number of Outputs:4
  • Voltage - Output 1:5V
  • Voltage - Output 2:24V
  • Voltage - Output 3:12V
  • Voltage - Output 4:-12V
  • Current - Output (Max):6A, 2A, 2A, 2A
  • Power (Watts):80W
  • Voltage - Isolation:-
  • Applications:ITE (Commercial), Medical
  • Efficiency:82%
  • Operating Temperature:0°C ~ 70°C (With Derating)
  • Mounting Type:Chassis Mount
  • Size / Dimension:4.50" L x 2.50" W x 1.17" H (114.3mm x 63.5mm x 29.7mm)
  • Approval Agency:CE, cURus, TUV
  • Standard Number:60601-1; 62368-1
