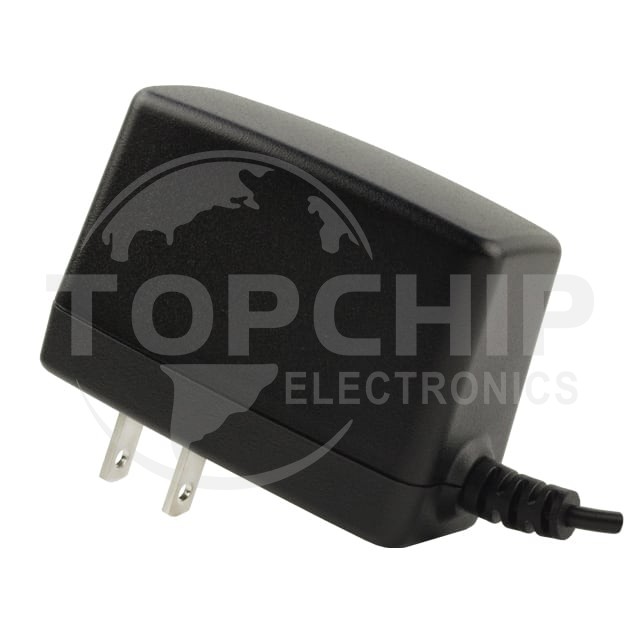

SWI25-15-N-P5 Specifications

• Series:SWI25-N (25.2W)
• Package:Box
• Part Status:Active
• Region Utilized:North America
• Form:Wall Mount (Class II)
• Input Type:Fixed Blade
• Voltage - Input:90 ~ 264 VAC
• Voltage - Output:15V
• Current - Output (Max):1.67A
• Power (Watts):25 W
• No Load Power Consumption:75mW (Max)
• Polarization:Positive Center
• Applications:ITE (Commercial)
• Efficiency:Level VI
• Operating Temperature:-20°C ~ 40°C
• Output Connector:Barrel Plug, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
• Cord Length:70.9" (1.80m)
• Input Connector:NEMA 1-15P
• Size / Dimension:2.80" L x 1.30" W x 1.91" H (71.0mm x 33.0mm x 48.4mm)
• Approval Agency:EN, FCC, UL
• Standard Number:55011 Class B; 60950-1; 61000-3-2; 61000-3-3; 61000-6-1; 62368-1
