0603DC-7N5XJRW

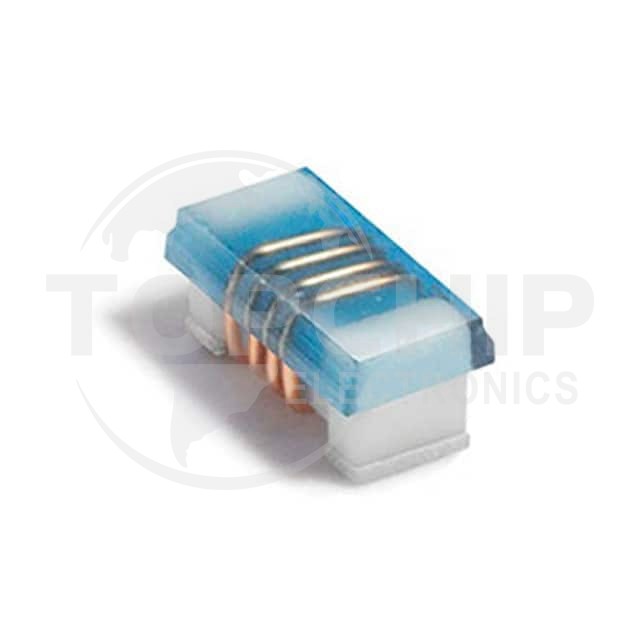

Image is for reference, please contact us to get the real picture

Manufacturer Part
0603DC-7N5XJRW
Manufacturer
COILCRAFT
Description
CERAMIC CHIP INDUCTORS 7.5NH
Category
Inductors, Coils, Chokes
Family
Fixed Inductors
Series
-
In Stock
4069
Datasheets
-

0603DC-7N5XJRW Specifications

  • Series:0603DC
  • Package:Tape & Reel (TR)
  • Part Status:Active
  • Type:Wirewound
  • Material - Core:Ceramic
  • Inductance:7.5 nH
  • Tolerance:±5%
  • Current Rating (Amps):2.45 A
  • Current - Saturation (Isat):-
  • Shielding:Unshielded
  • DC Resistance (DCR):53mOhm Max
  • Q @ Freq:88 @ 900MHz
  • Frequency - Self Resonant:5.2GHz
  • Ratings:AEC-Q200
  • Operating Temperature:-40°C ~ 125°C
  • Inductance Frequency - Test:250 MHz
  • Features:-
  • Mounting Type:Surface Mount
  • Package / Case:0603 (1608 Metric)
  • Supplier Device Package:0603
  • Size / Dimension:0.067" L x 0.039" W (1.70mm x 0.99mm)
  • Height - Seated (Max):0.035" (0.89mm)
