PTN1206E3093BST1

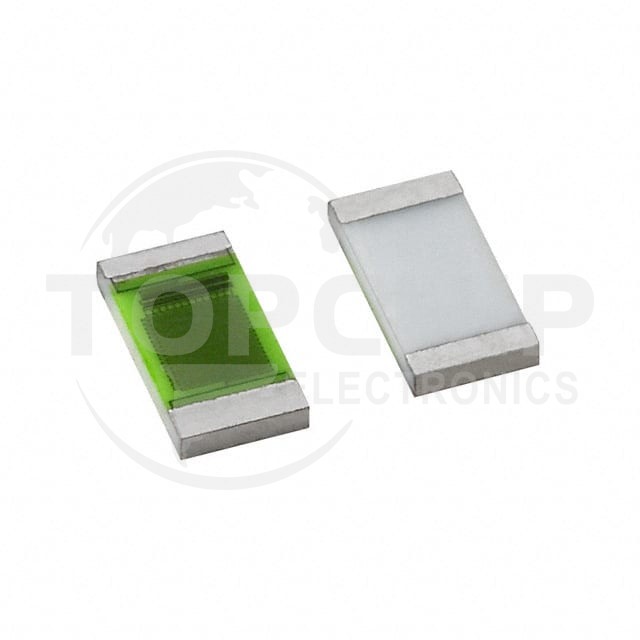

Image is for reference, please contact us to get the real picture

Manufacturer Part
PTN1206E3093BST1
Manufacturer
Vishay
Description
RES SMD 309K OHM 0.1% 0.4W 1206
Category
Resistors
Family
Chip Resistors-Surface Mount
Series
-
In Stock
1384
Datasheets
-

PTN1206E3093BST1 Specifications

  • Series:PTN
  • Package:Tape & Reel (TR)Cut Tape (CT)
  • Part Status:Active
  • Resistance:309 kOhms
  • Tolerance:±0.1%
  • Power (Watts):0.4W, 2/5W
  • Composition:Thin Film
  • Features:Anti-Sulfur, Moisture Resistant, Non-Inductive
  • Temperature Coefficient:±25ppm/°C
  • Operating Temperature:-55°C ~ 155°C
  • Package / Case:1206 (3216 Metric)
  • Supplier Device Package:1206
  • Ratings:-
  • Size / Dimension:0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Height - Seated (Max):0.033" (0.84mm)
  • Number of Terminations:2
  • Failure Rate:-
